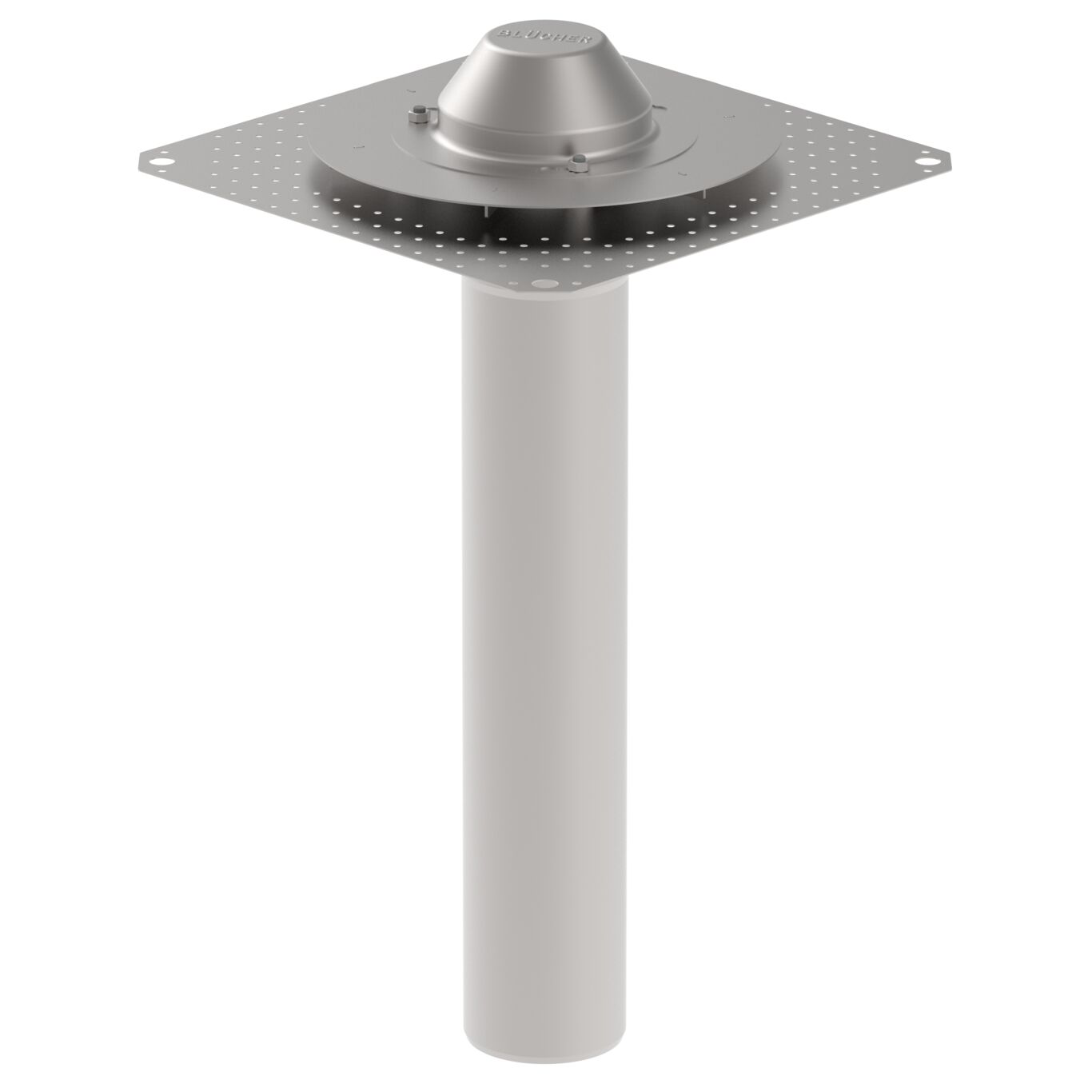

ROOF DRAIN FOR SIPHONIC - (401.206.110)
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.206.110
EAN no.: 5705499141269

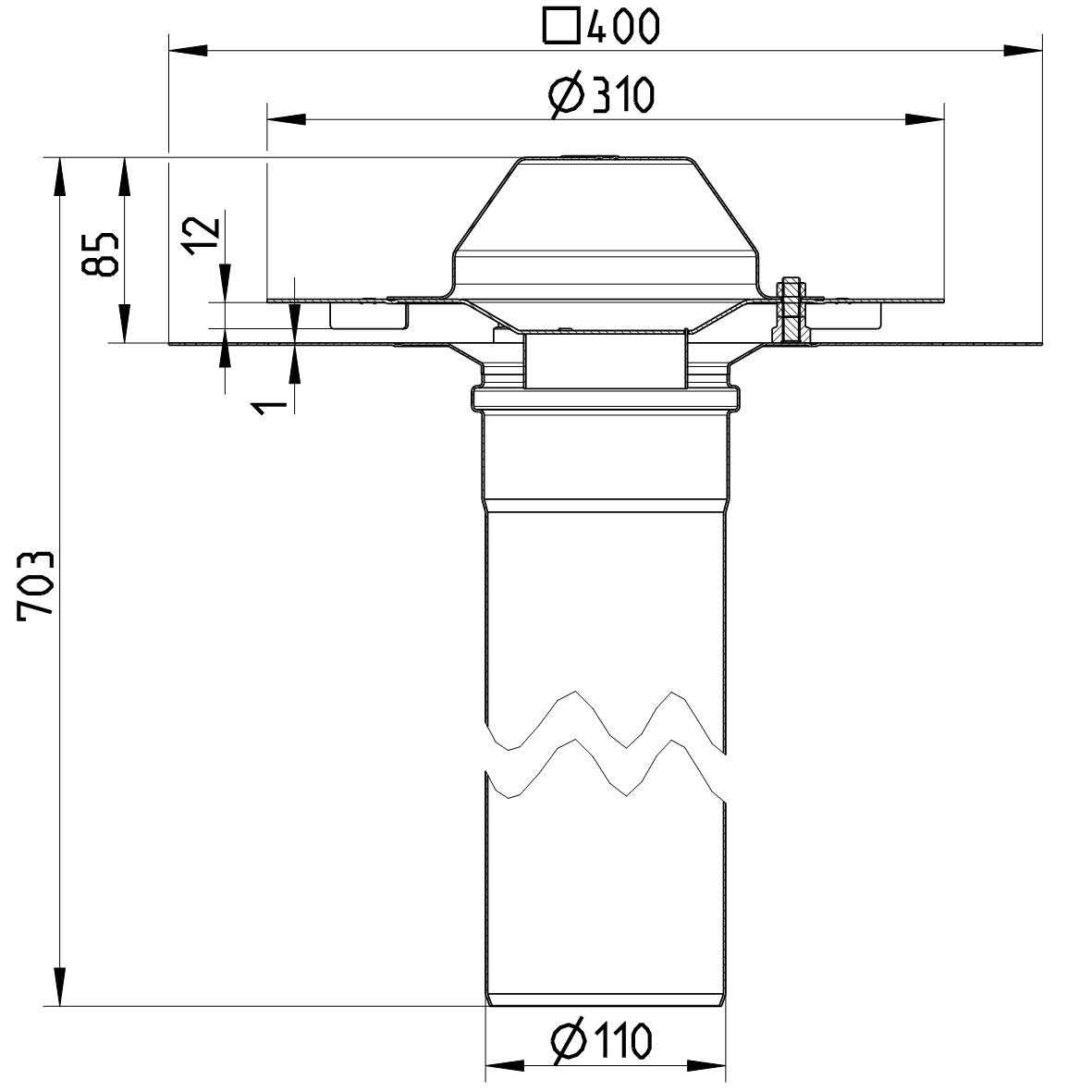

ROOF DRAIN FOR SIPHONIC
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø110mm, vertical
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 35.0 |
Minimum Height (mm) | 696 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Roof | Bitumen |
System | Siphonic |
Weight (kg) | 4,42 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
