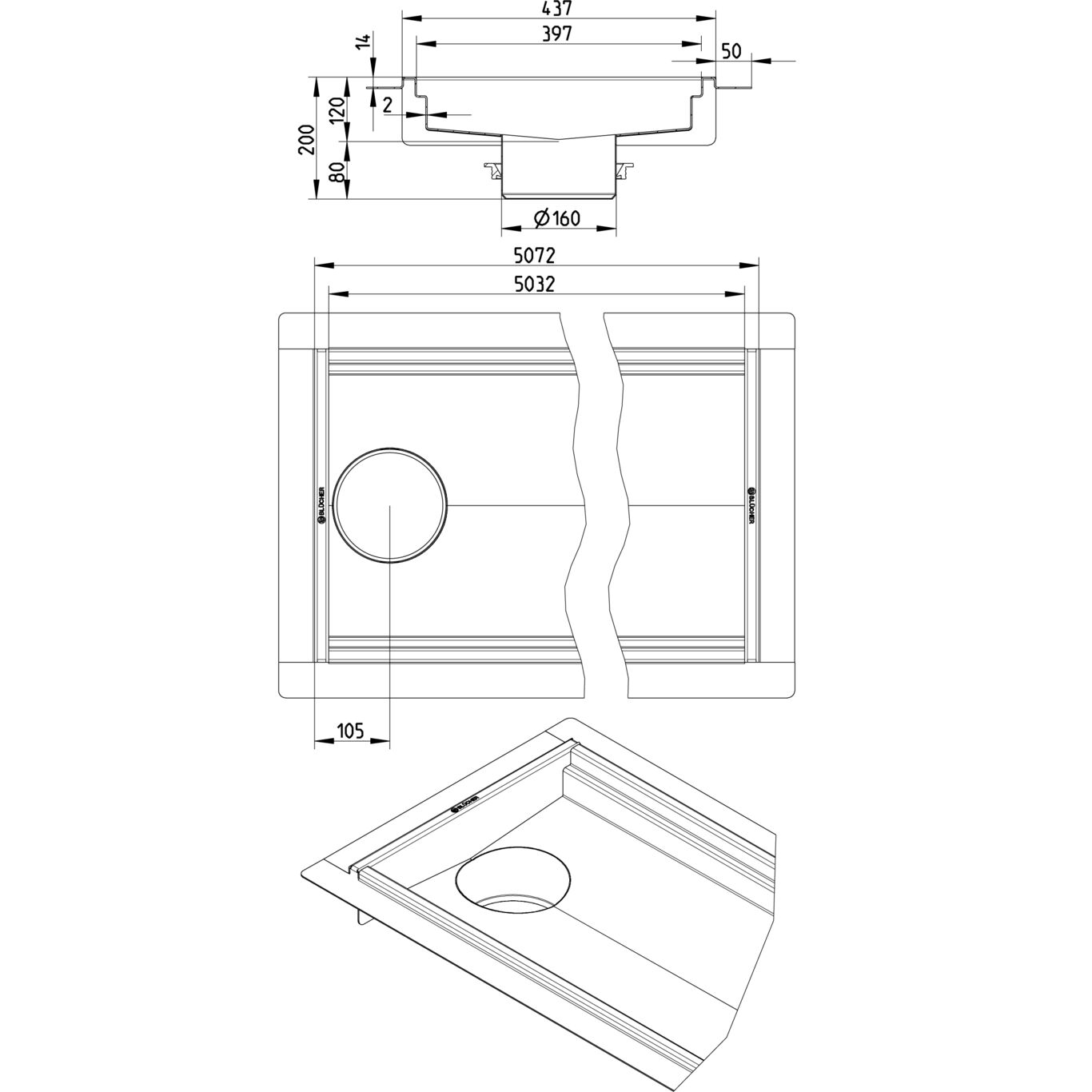

CHANNEL 400x5000 END OUTLET - (674FK050-00BA)
×
Part Of the Series: Channel-Liquid membrane
Type no.: 674FK050-00BA
EAN no.: 5705499131468
Size: 400x5000
CHANNEL 400x5000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 200 |
Outlet Box | No |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (mm) | 400x5000 |
Weight (kg) | 61,27 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
