CHANNEL 150x1000 END OUTLET - (670CH010-00BA S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH010-00BA S
EAN no.: 5705499122015
VVS no.: 22186410
Size: 150x1000

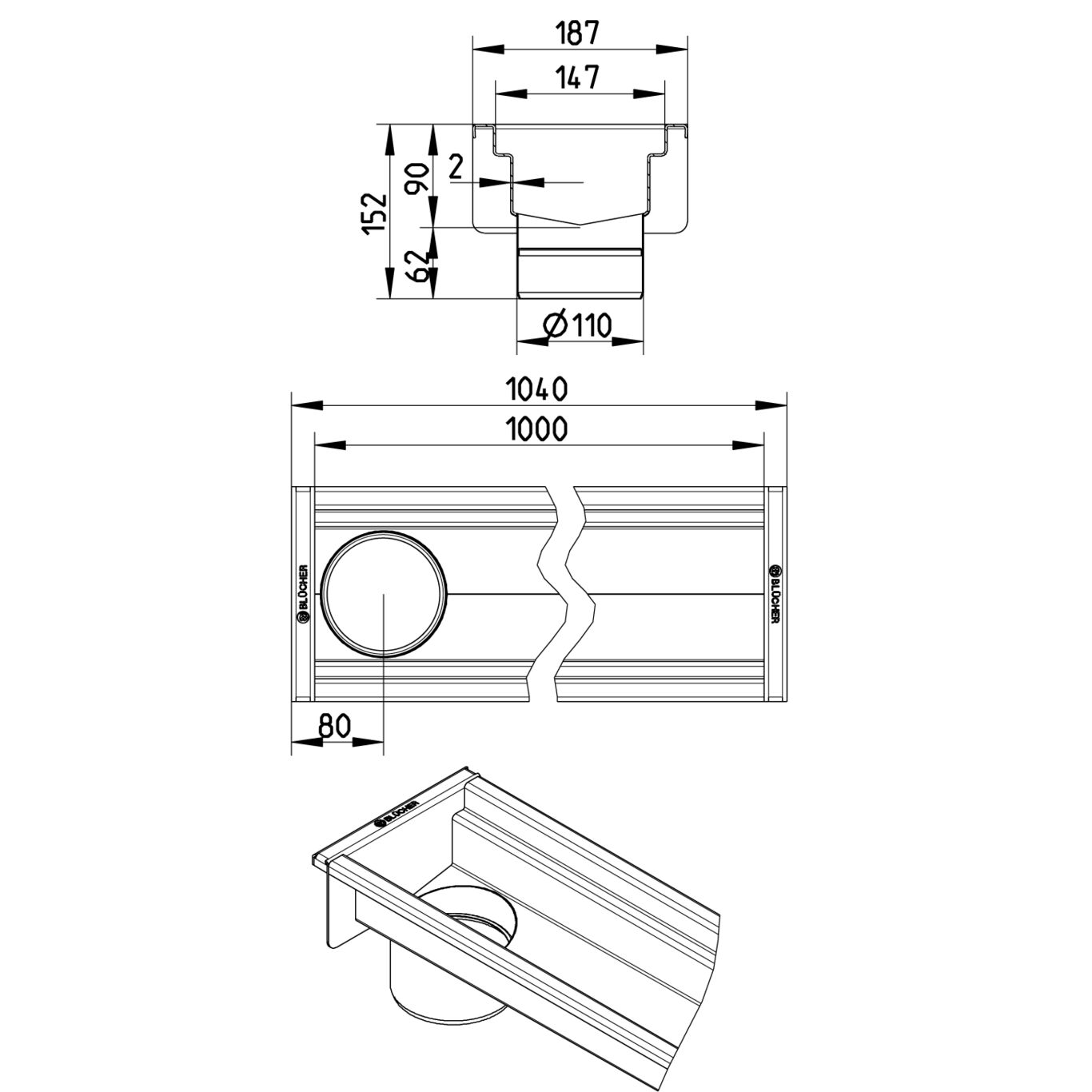

CHANNEL 150x1000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1000 |
| Weight (kg) | 6,23 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
AUS - WMKT00204 - 24
NO - PS3079
US - NSF
BLÜCHER® Channels EPD KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
