CHANNEL 150x5000 END OUTLET - (670CH050-00BA S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH050-00BA S
EAN no.: 5705499002492
VVS no.: 221806450
Size: 150x5000

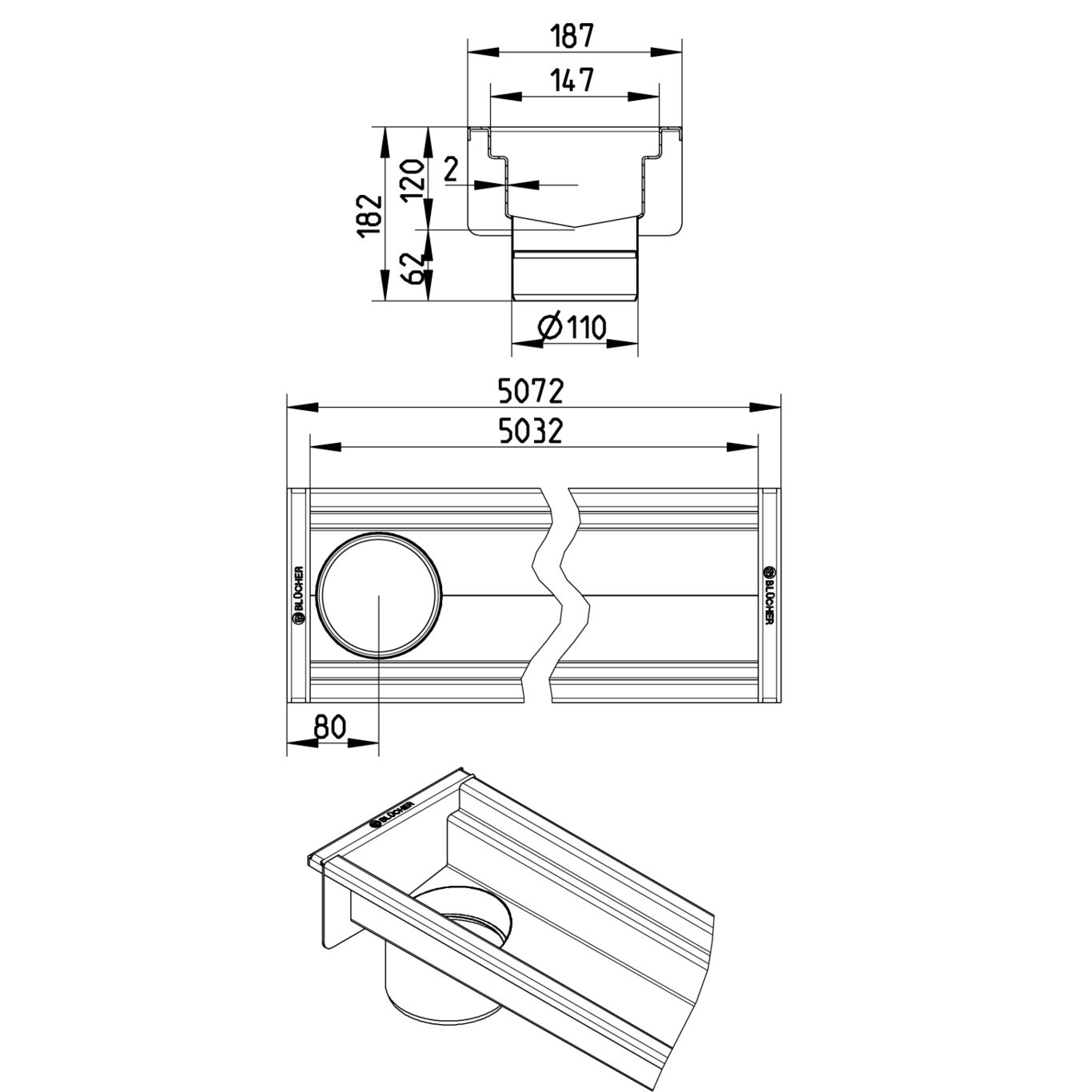

CHANNEL 150x5000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 182 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x5000 |
| Weight (kg) | 32,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
BLÜCHER® Channels EPD
NO - PS3079
US - NSF RINA -MAC320524XG EuroPipe ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products
