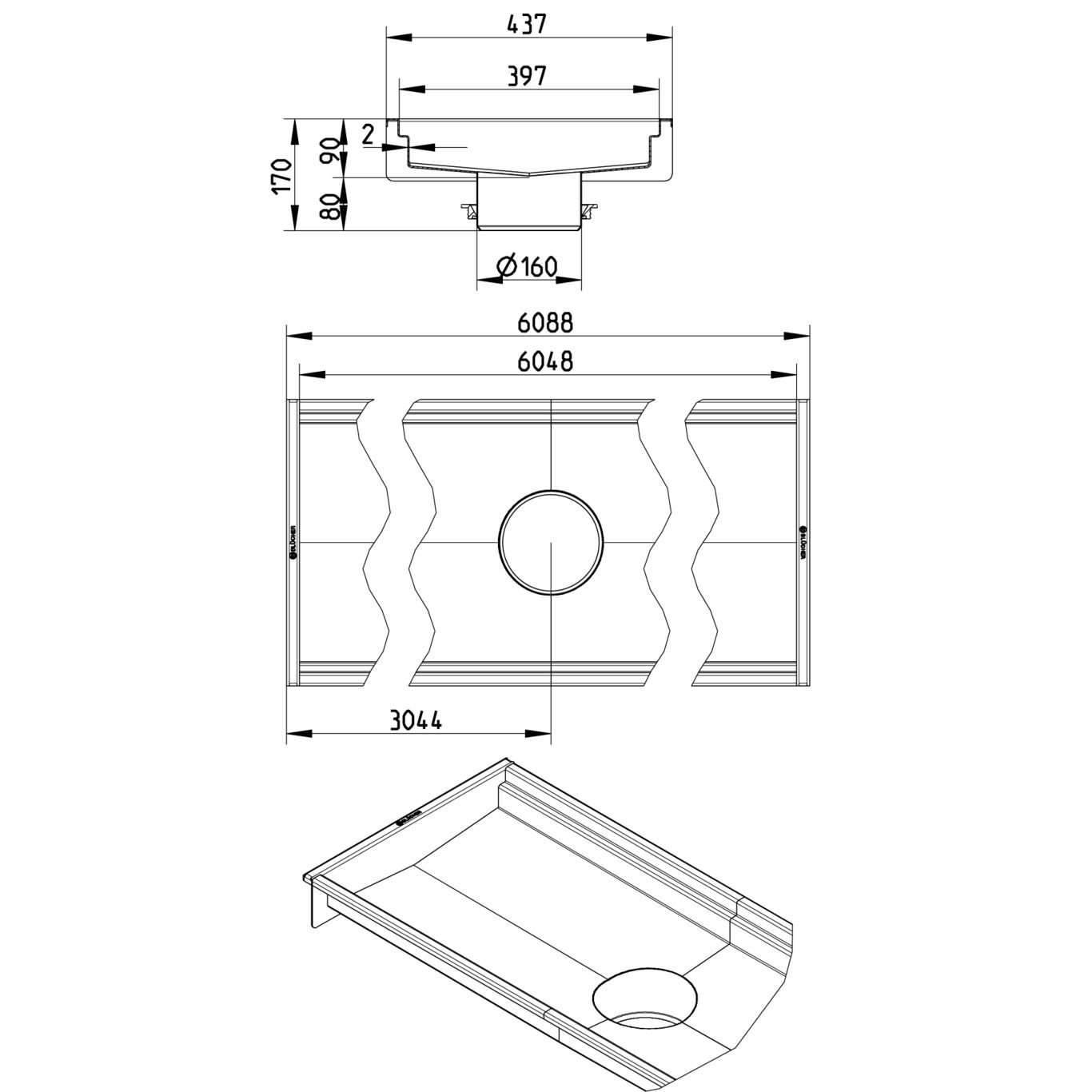

CHANNEL 400x6000 CENTER OUTLET - (670FK060-30BA)
×
Part Of the Series: Channel-No membrane
Type no.: 670FK060-30BA
EAN no.: 5705499130058
Size: 400x6000
CHANNEL 400x6000 CENTER OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 170 |
Outlet Box | No |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 400x6000 |
Weight (kg) | 58,45 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
