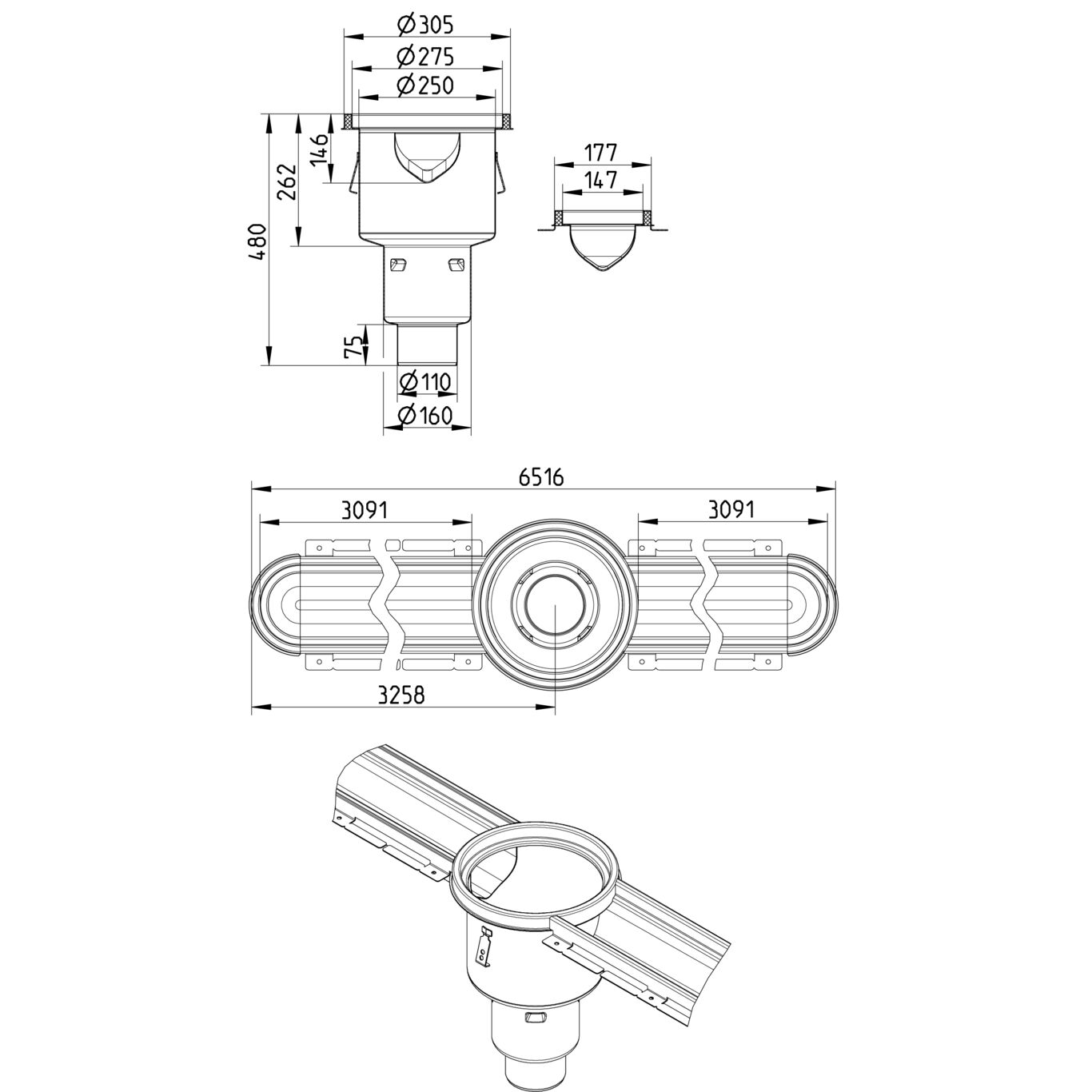

HYGIENICPRO CHANNEL 150x6000 CENTER OUTLET - (676CC060-30DF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC060-30DF
EAN no.: 5705499137194
VVS no.: 221801160
LVI no.: 3305689
Size: 150x6000
HYGIENICPRO CHANNEL 150x6000 CENTER OUTLET
-Medium model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 480 |
| Outlet Box | Yes |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x6000 |
| Weight (kg) | 51,11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
