SHOWER CHANNEL WATERLINE 700 - (378.070.056.20)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.070.056.20
EAN no.: 5705499138146
VVS no.: 155062007
RSK no.: 7121692
LVI no.: 3304415
Size: 50x700

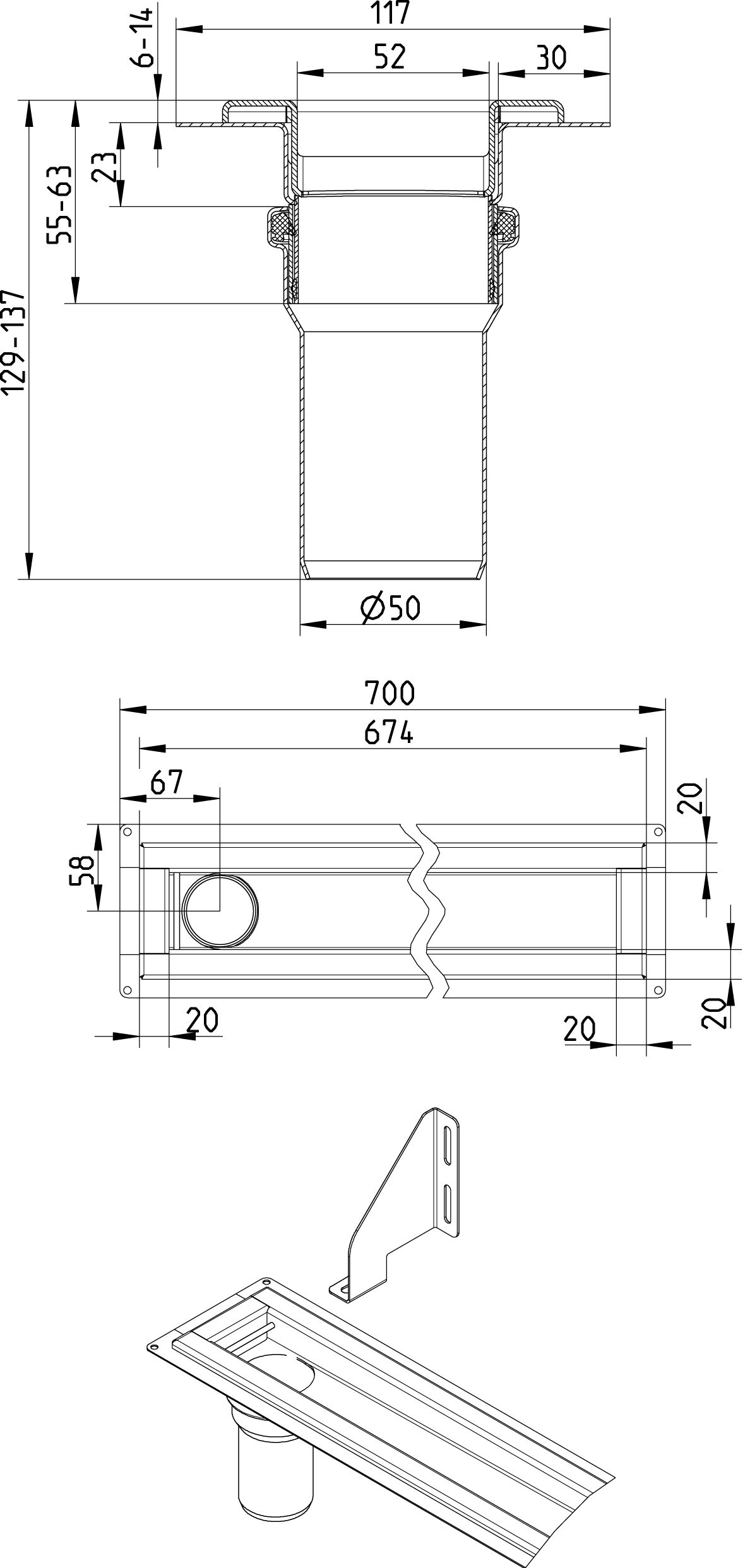

SHOWER CHANNEL WATERLINE 700
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 50x700 |
| Weight (kg) | 2,29 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DK - MK 7.21/1664
DK - VA 2.44/19499 WaterLine Type 370 & 378
FI - Tyyppihyväksyntäpäätös EUF129-23001919-TH2
BLÜCHER® Drains EPD Declaration of Conformity - BSEN1253-002 PL - Hygienic Certificate - All Products Declaration of Conformity - EN1253-001
