SHOWER CHANNEL WATERLINE 800 - (378.080.056.20)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.080.056.20
EAN no.: 5705499138153
VVS no.: 155062008
RSK no.: 7121693
LVI no.: 3304416
Size: 50x800

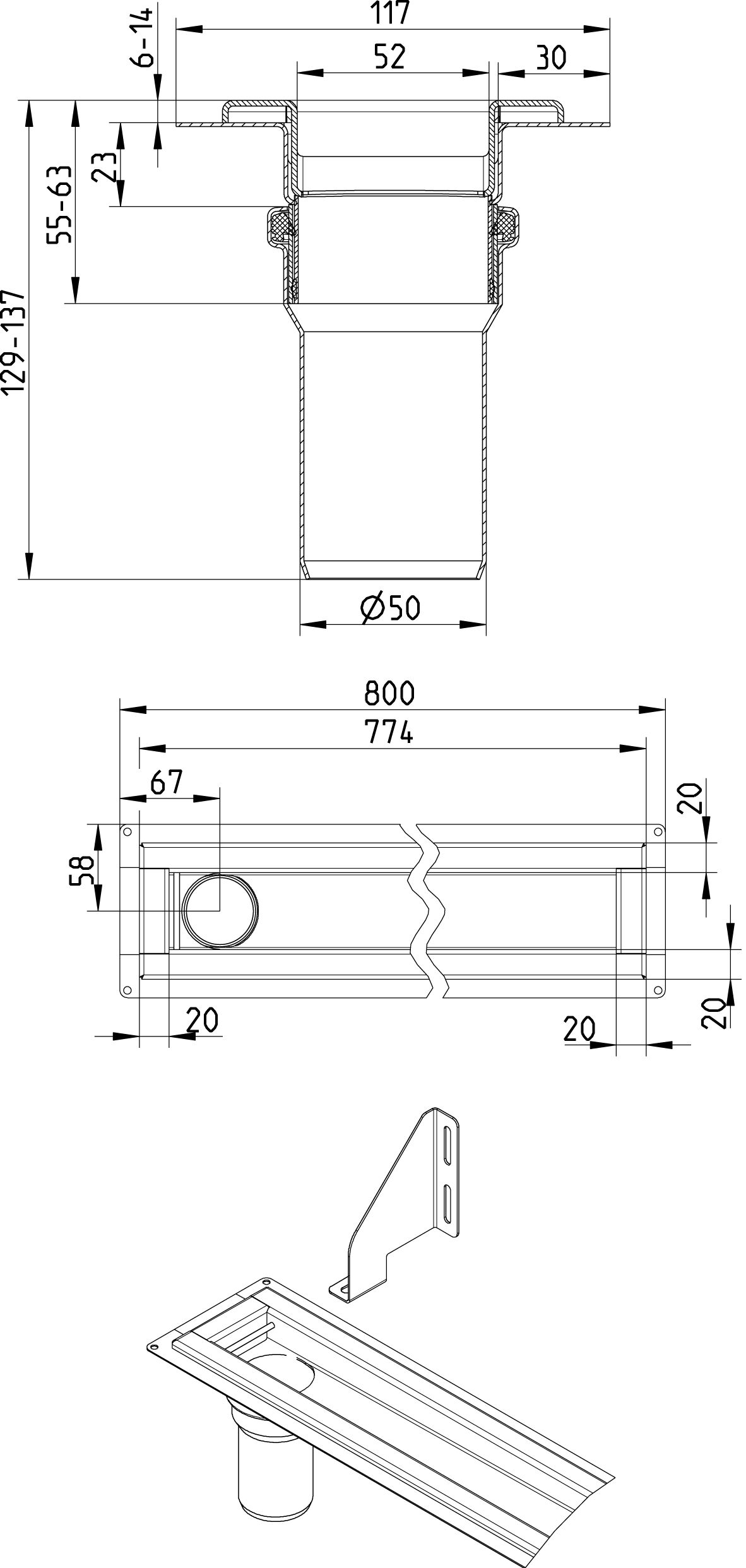

SHOWER CHANNEL WATERLINE 800
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 50x800 |
| Weight (kg) | 2,56 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
