SHOWER CHANNEL WATERLINE ATLANTIS 700 - (370.070.056.2H)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 370.070.056.2H
EAN no.: 5705499001990
VVS no.: 155066107

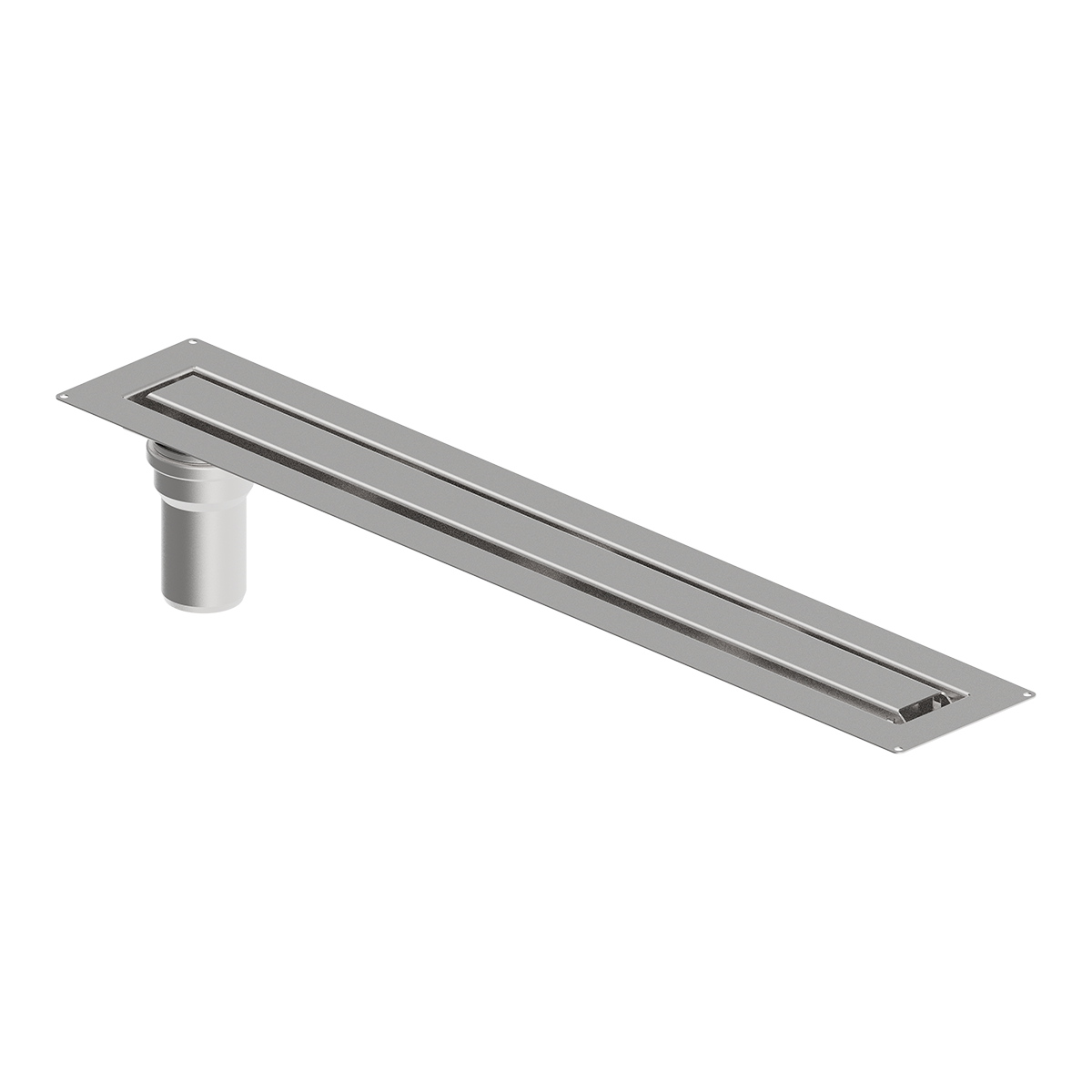

SHOWER CHANNEL WATERLINE ATLANTIS 700
-Floor: concrete and tiled
-Frame: rectangular

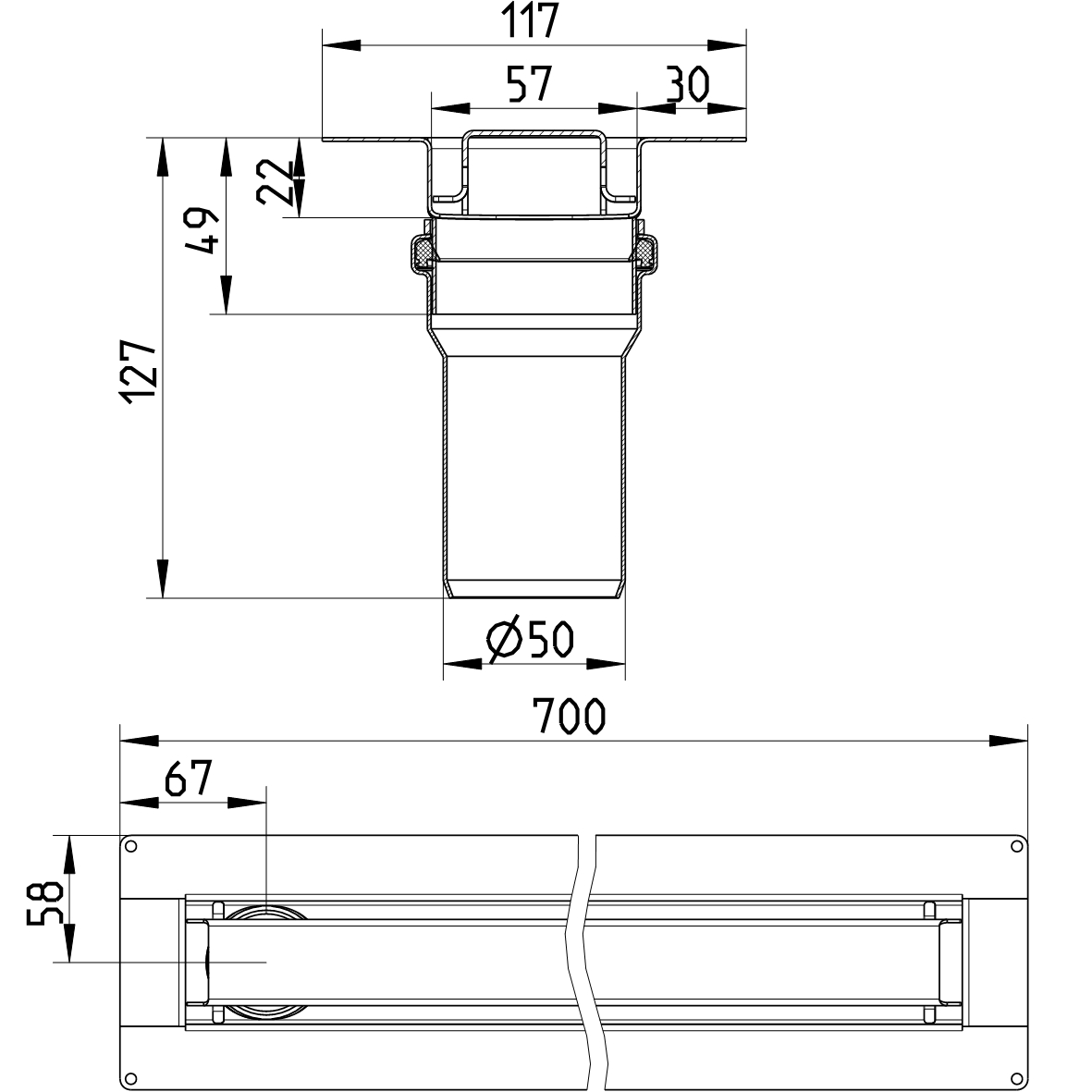

-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

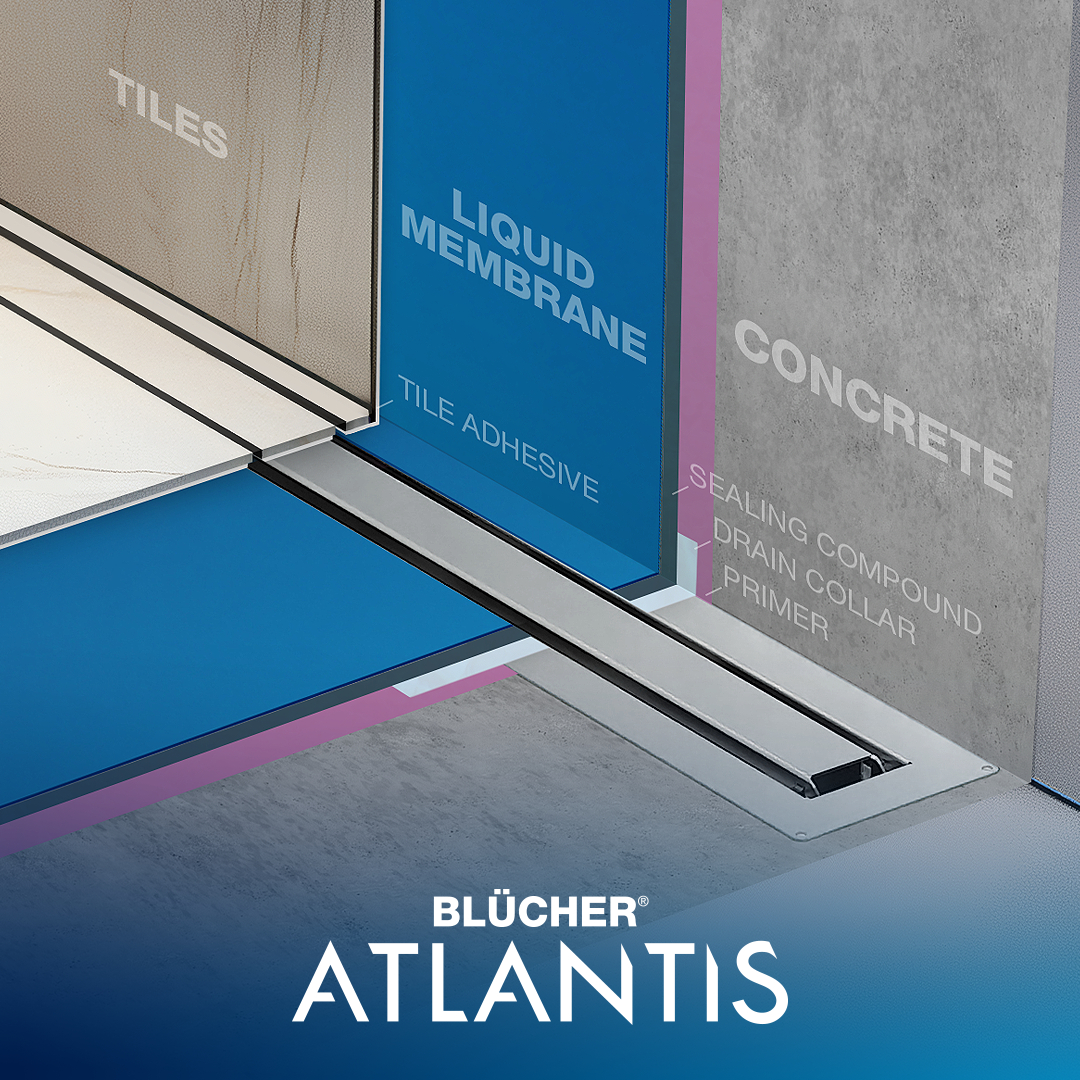

| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Weight (kg) | 1,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
