SHOWER CHANNEL WATERLINE 700 - (275.070.056.20)
Part Of the Series: Shower channel-Vinyl
Type no.: 275.070.056.20
EAN no.: 5705499122527
VVS no.: 155060007
RSK no.: 7121679
NRF no.: 3394731
LVI no.: 3304470
Size: 50x700

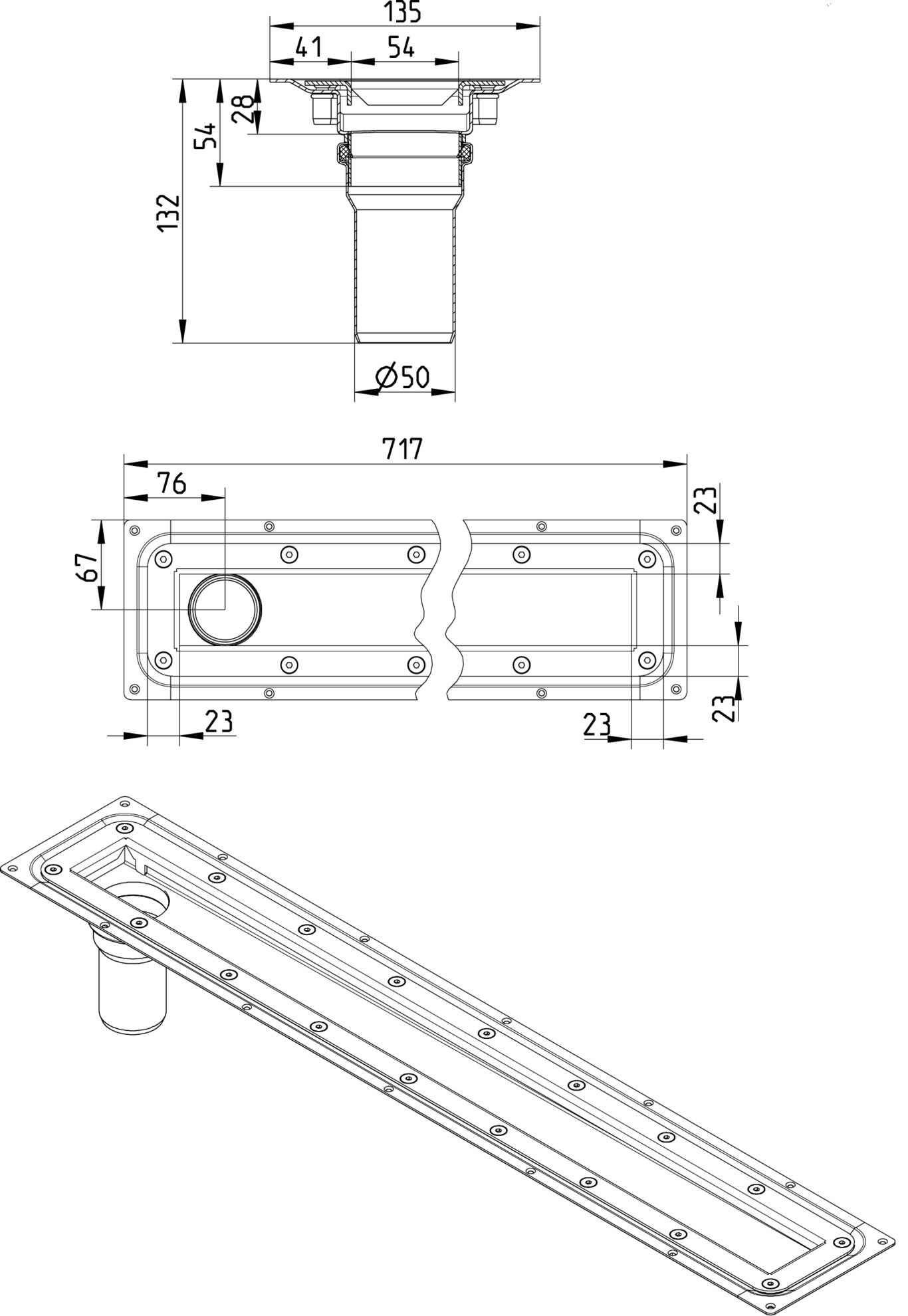

SHOWER CHANNEL WATERLINE 700
-Floor: vinyl
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 128 |
Outlet Box | No |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (mm) | 50x700 |
Weight (kg) | 2,31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - MK 7.21/1664-21 HACCP Food Safety Programme - Australasia SE - RI.SE 0084-07 2021 Type 275, 398 DK - VA 2.44/19205-21 HACCP Food Safety Programme - Europe RU - 0212321 Drains-21 FI-Tyyppihyväksyntä VTT-RTH-03128-08 Blücher Waterline 275,378-2017 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products ABS - LD1716353-PDA
