ADJUSTABLE LOWER PART MULTI - (210.200.110 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 210.200.110 V
EAN no.: 5705499129267
RSK no.: 7119418
NRF no.: 3394501
LVI no.: 3303879

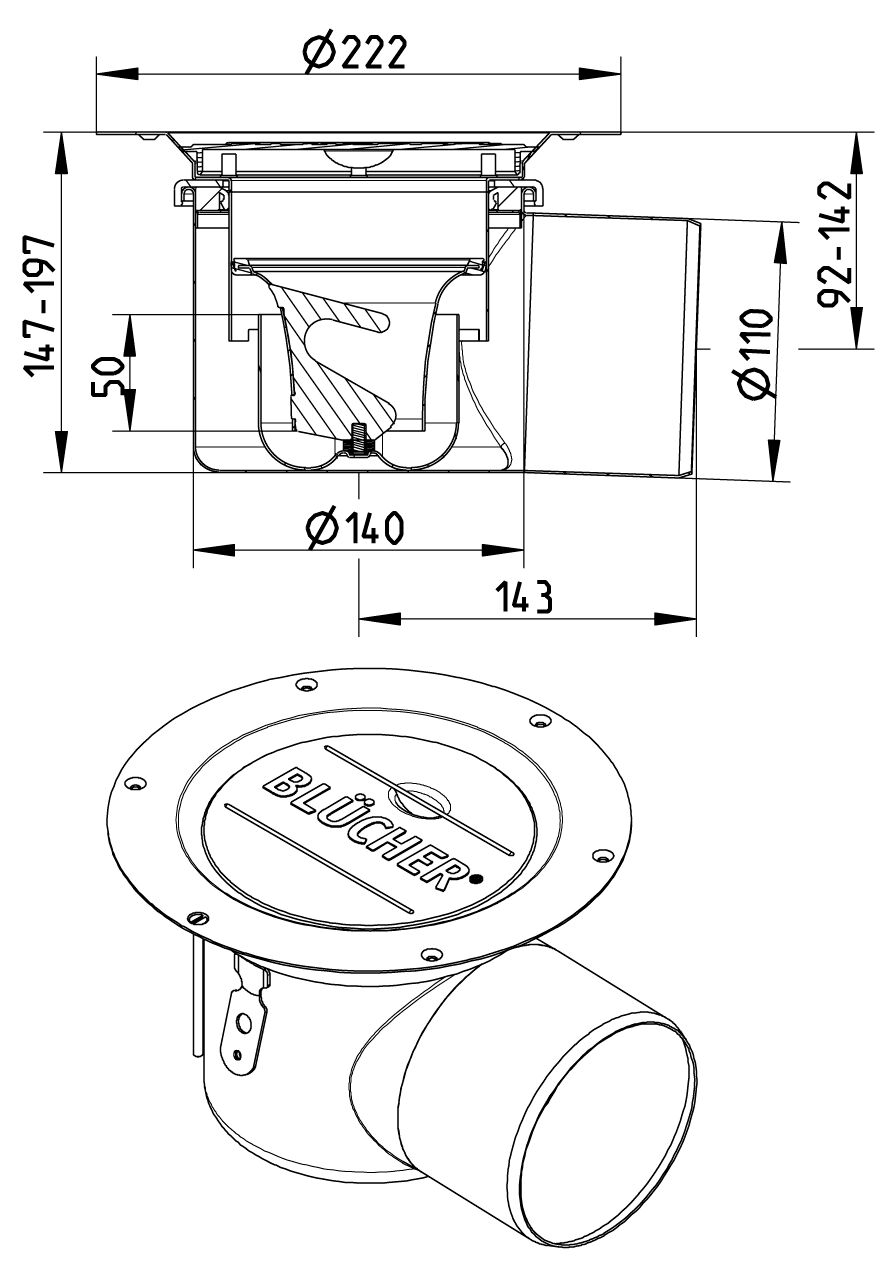

ADJUSTABLE LOWER PART MULTI
-With removable water trap
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 197 |
| Minimum Height (mm) | 147 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,75 |
-
