ADJUSTABLE LOWER PART MULTI - (211.200.075 V)
×
Part Of the Series: MULTI lower part
Type no.: 211.200.075 V
EAN no.: 5705499105810
RSK no.: 7119273
NRF no.: 3394888
LVI no.: 3303880

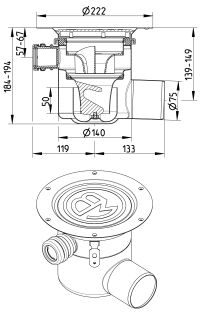

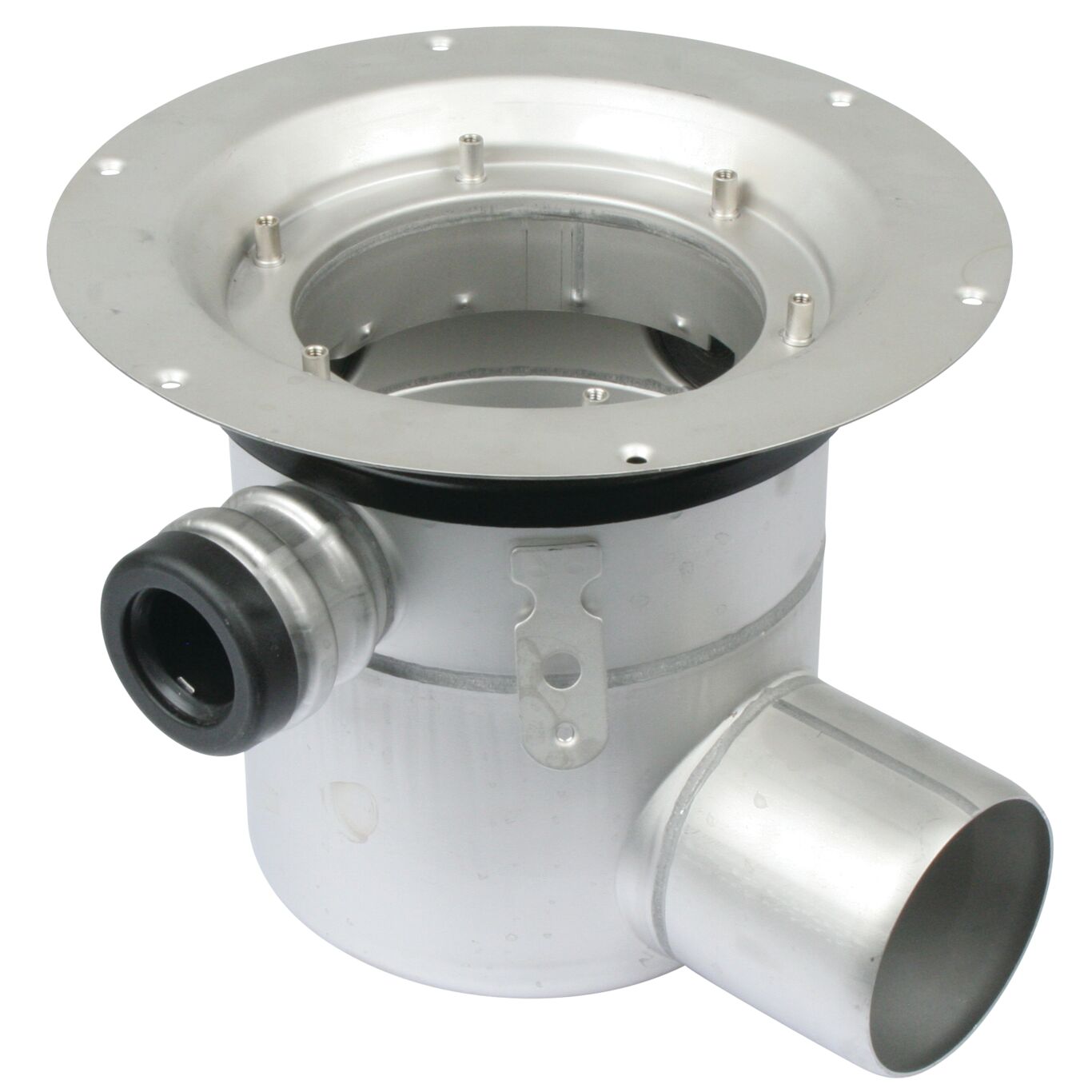

ADJUSTABLE LOWER PART MULTI
-With side inlets and removable water trap
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 194 |
Minimum Height (mm) | 184 |
Number of Inlets | 3 (Ø32/40mm) |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Water Seal Height (mm) | 50 |
Weight (kg) | 2,00 |
-
