ADJUSTABLE LOWER PART MULTI - (250.200.075 LV)
×
Part Of the Series: MULTI lower part
Type no.: 250.200.075 LV
EAN no.: 5705499135022
RSK no.: 7119599
NRF no.: 3394924
LVI no.: 3305792

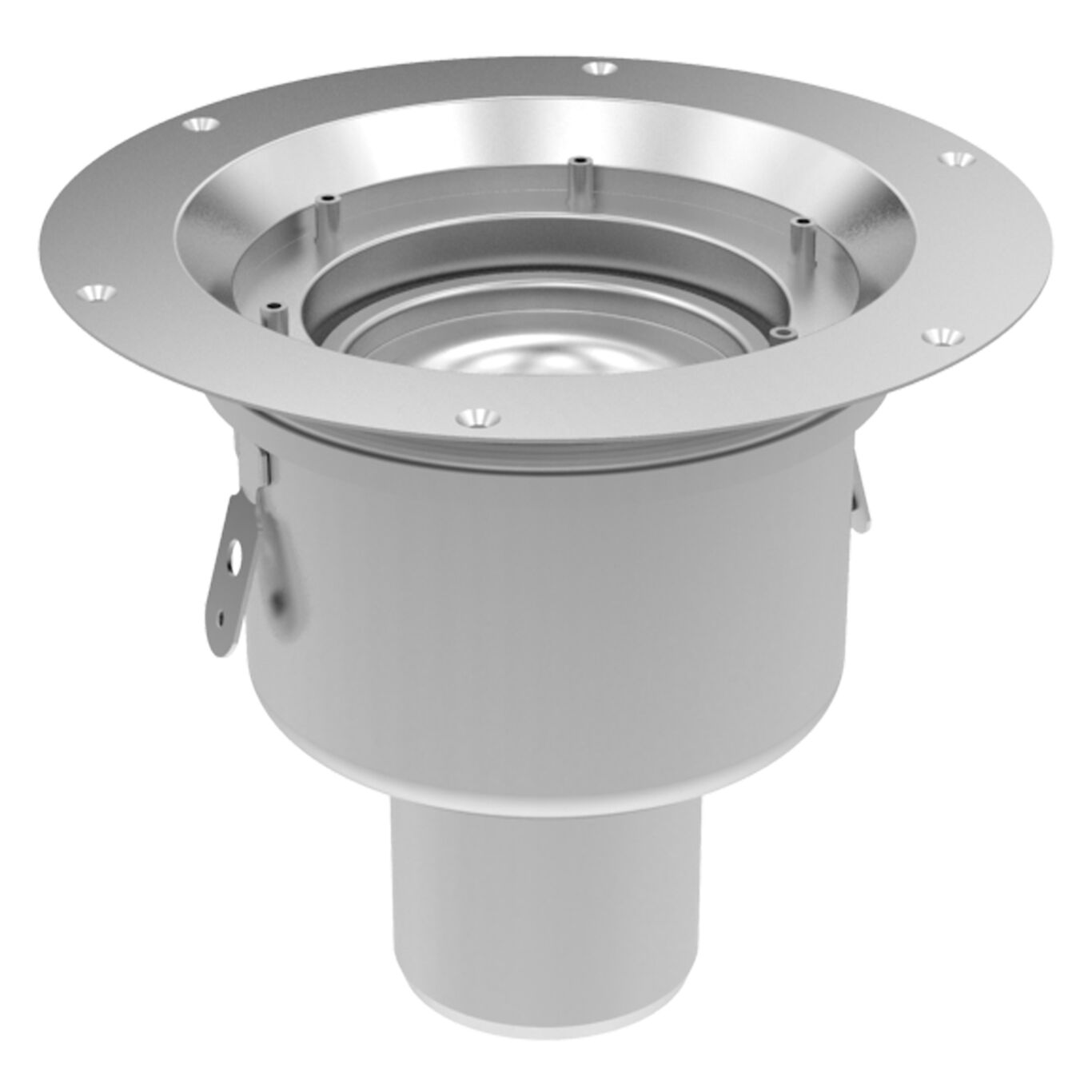

ADJUSTABLE LOWER PART MULTI
-With removable water trap with odour stop
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301

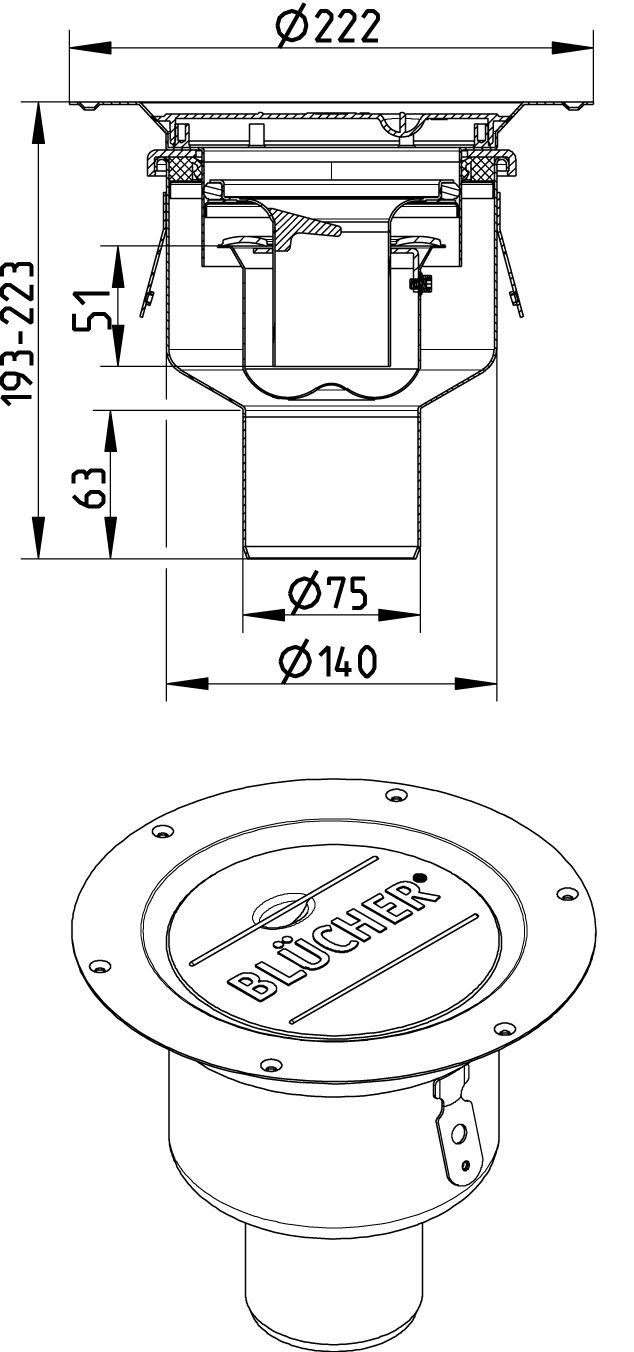

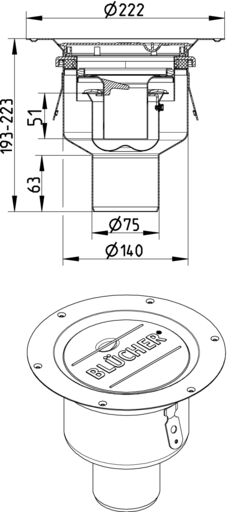

Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 223 |
Minimum Height (mm) | 193 |
Number of Inlets | 0 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Water Seal Height (mm) | 50 |
Weight (kg) | 1,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
