ADJUSTABLE LOWER PART MULTI - (251.200.075 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 251.200.075 V
EAN no.: 5705499105896
RSK no.: 7119276
NRF no.: 3394889
LVI no.: 3303884

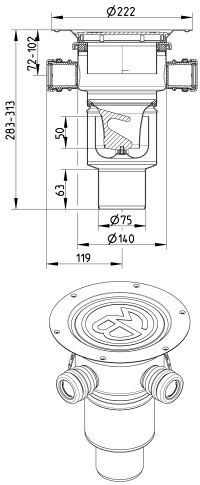

ADJUSTABLE LOWER PART MULTI
-With side inlets and removable water trap
-Floor: vinyl
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 313 |
| Minimum Height (mm) | 283 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 2,06 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
