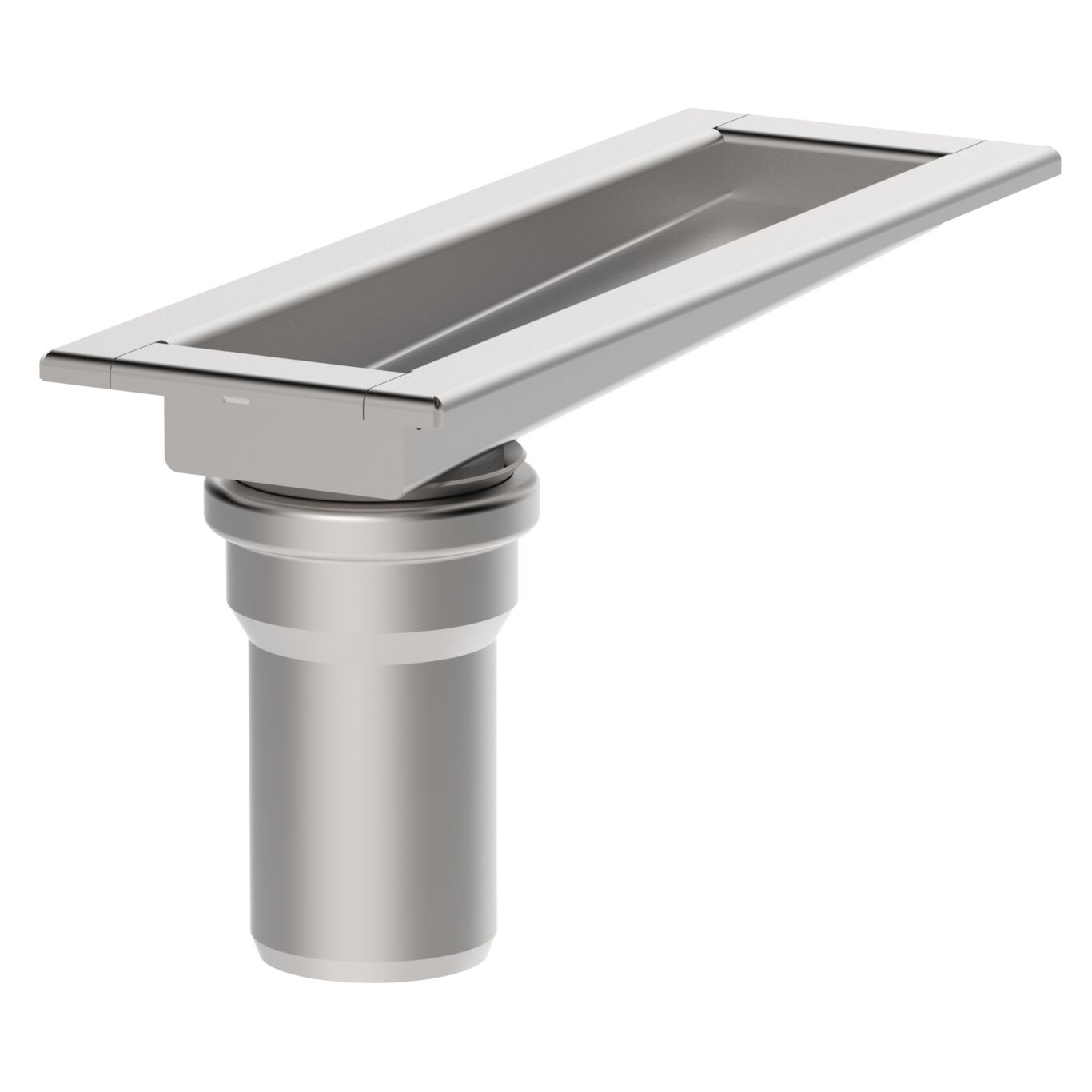

SHOWER CHANNEL WATERLINE 300 - (178.030.056.20)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 178.030.056.20
EAN no.: 5705499138108
VVS no.: 155061003
NRF no.: 3394807
Size: 50x300
SHOWER CHANNEL WATERLINE 300
-Floor: concrete and tiled
-No membrane, frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 50x300 |
| Weight (kg) | 0,67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® Drains EPD
TÜRK LOYDU - 25041616077231247 Declaration of Conformity - BSEN1253-002 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA Declaration of Conformity - EN1253-001 RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02
