ADJUSTABLE LOWER PART MULTI - (250.200.110 VS)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 250.200.110 VS
EAN no.: 5705499131956
RSK no.: 7119500
LVI no.: 3304205

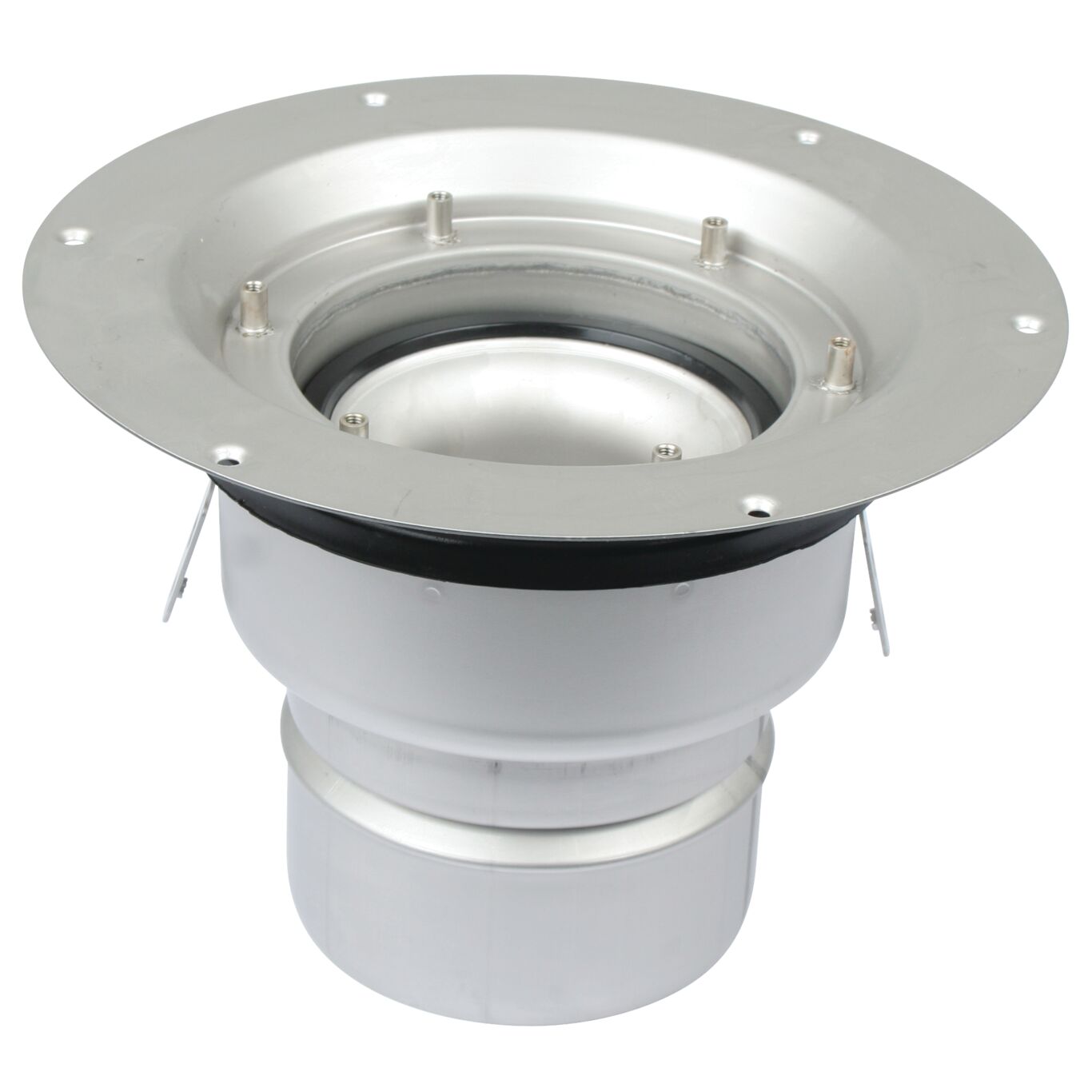

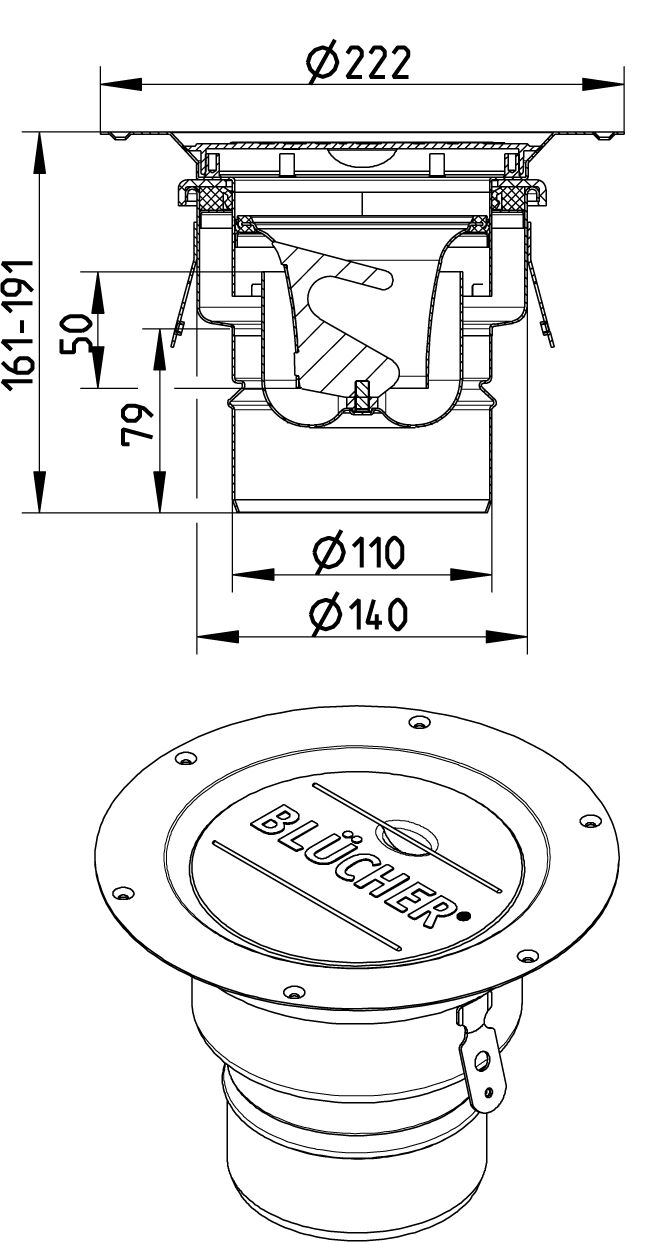

ADJUSTABLE LOWER PART MULTI
-With removable water trap
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 191 |
| Minimum Height (mm) | 161 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,48 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
