ADJUSTABLE LOWER PART MULTI - (251.200.075 S)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 251.200.075 S
EAN no.: 5705499105766
RSK no.: 7120298

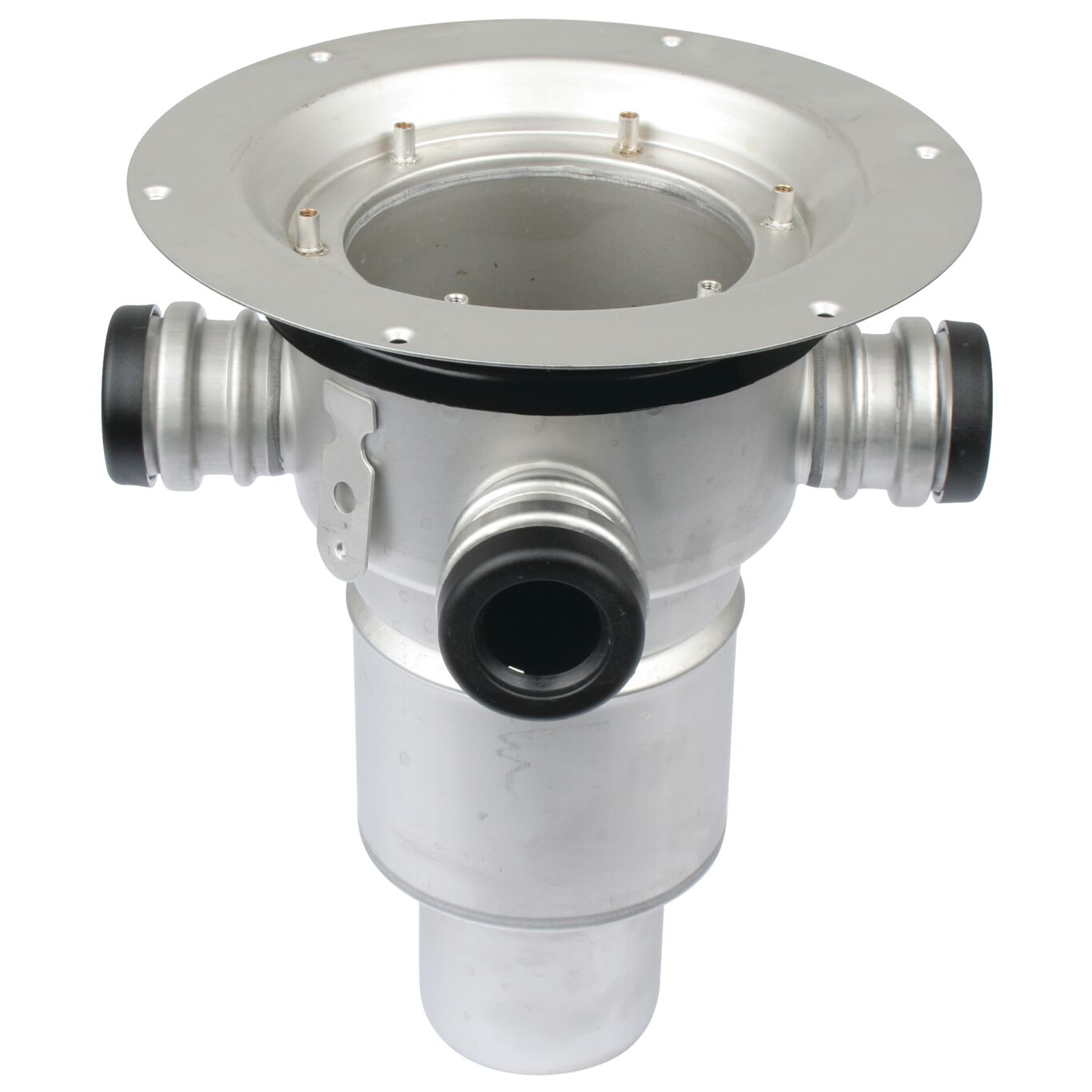

ADJUSTABLE LOWER PART MULTI
-With side inlets
-Floor: vinyl
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404

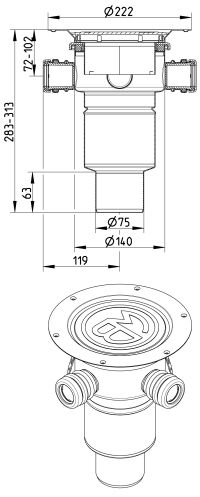

| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 313 |
| Minimum Height (mm) | 283 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
