ADJUSTABLE LOWER PART MULTI - (251.200.075 VS)
×
Part Of the Series: MULTI lower part
Type no.: 251.200.075 VS
EAN no.: 5705499105902
RSK no.: 7120179
LVI no.: 3304223

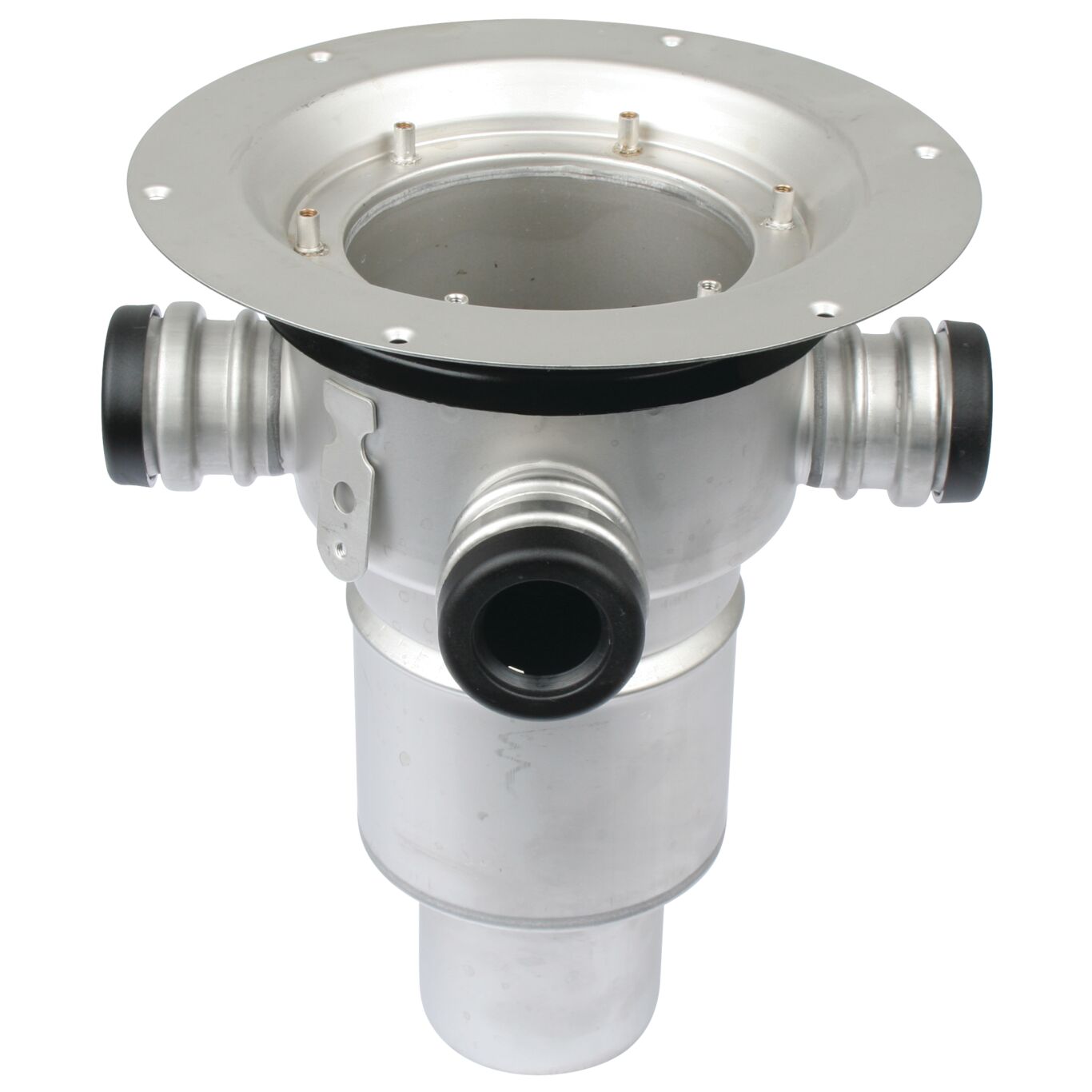

ADJUSTABLE LOWER PART MULTI
-With side inlets and removable water trap
-Floor: vinyl
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |

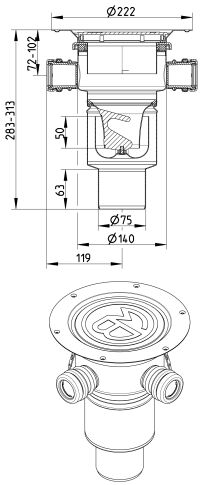

Maximum Height (mm) | 313 |
Minimum Height (mm) | 283 |
Number of Inlets | 3 (Ø32/40mm) |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Water Seal Height (mm) | 50 |
Weight (kg) | 2,06 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
