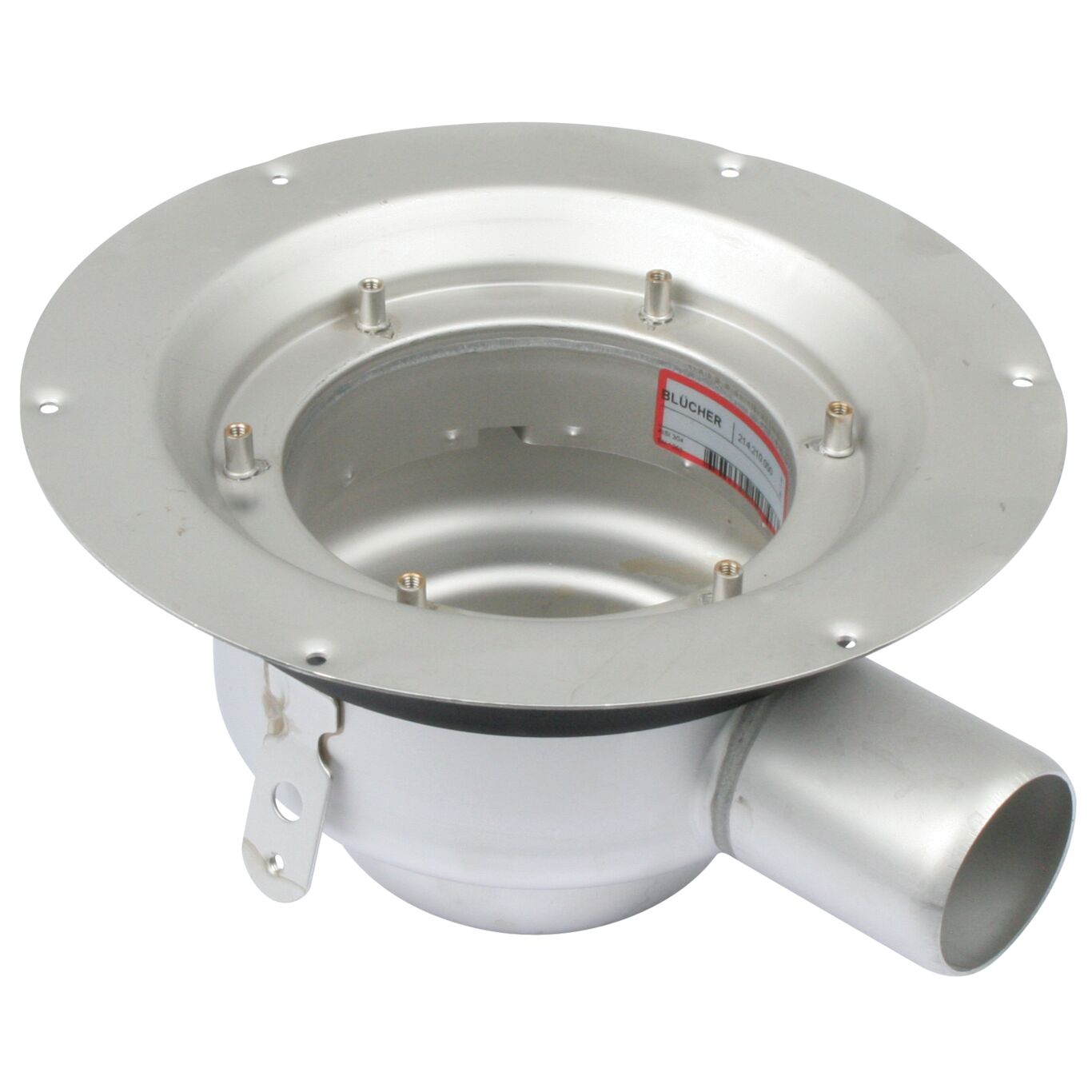

ADJUSTABLE LOWER PART MULTI, LOW - (214.210.050 S)
×
Part Of the Series: MULTI lower part
Type no.: 214.210.050 S
EAN no.: 5705499107470
RSK no.: 7120293
ADJUSTABLE LOWER PART MULTI, LOW
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 130 |
Minimum Height (mm) | 120 |
Number of Inlets | 0 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Weight (kg) | 1,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
