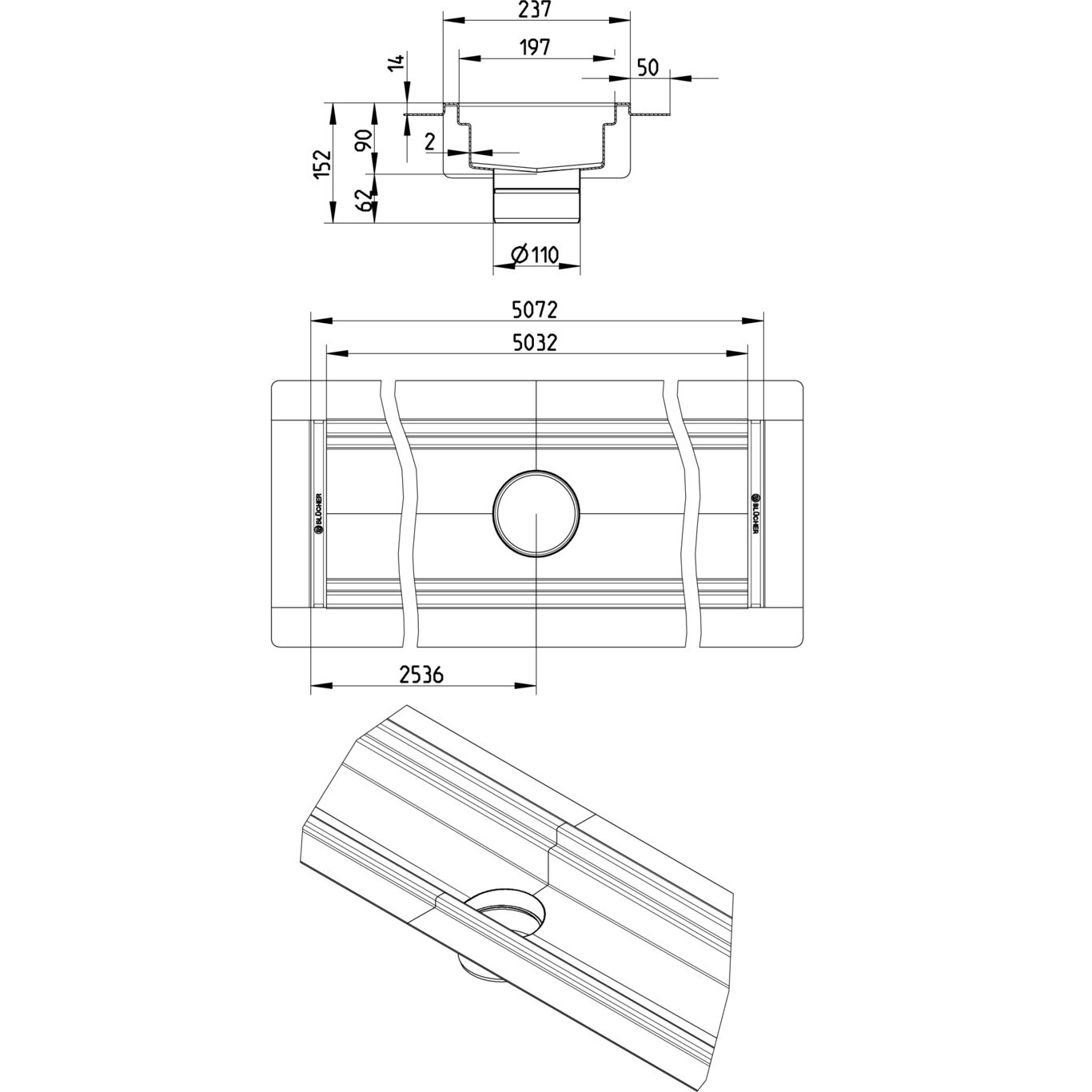

CHANNEL 200x5000 CENTER OUTLET - (674DH050-25BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DH050-25BA

EAN no.: 5705499131055

Size: 200x5000

Product Specification
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x5000
Weight (kg) 41,41
