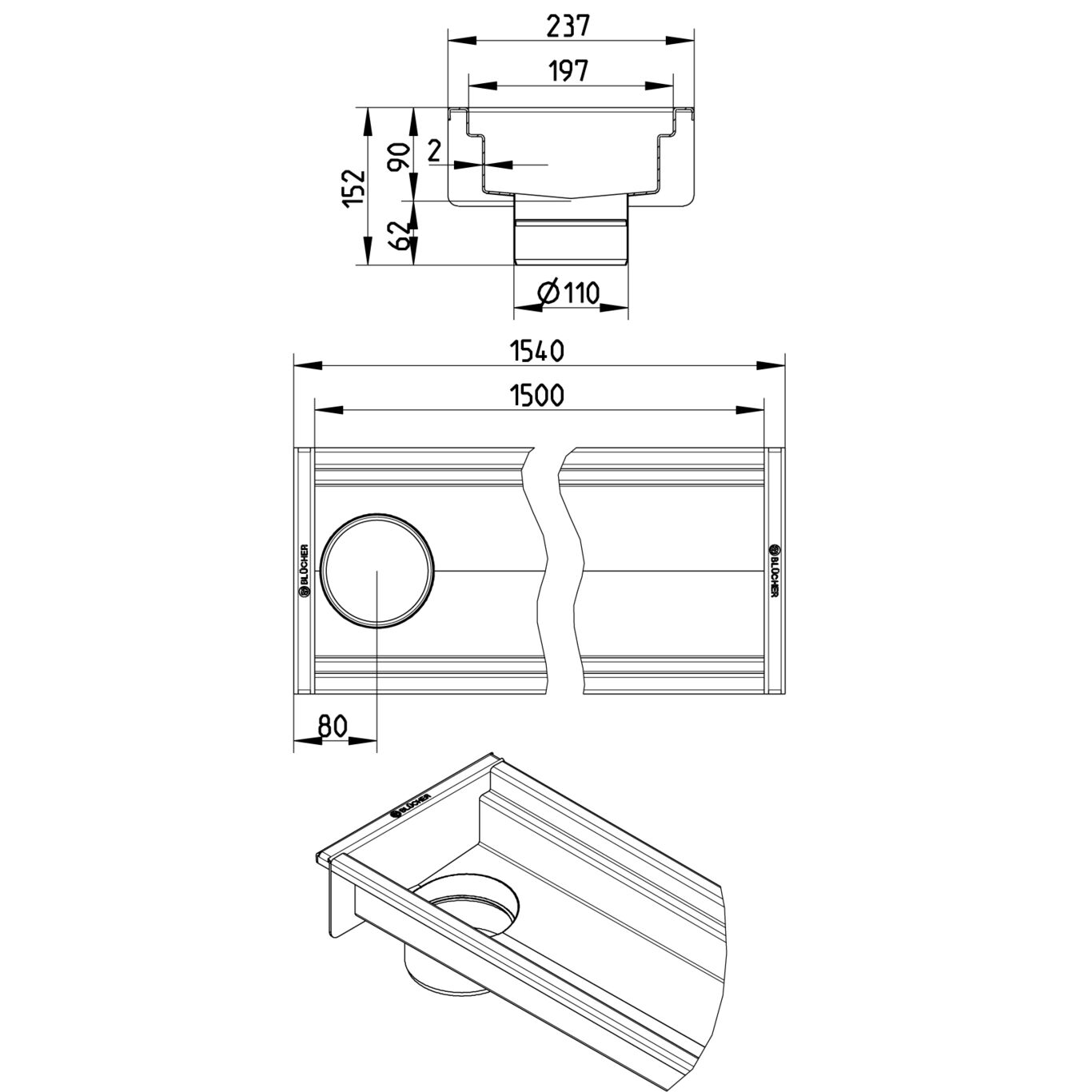

CHANNEL 200x1500 END OUTLET - (670DH015-00BA)

Part Of the Series: Channel-No membrane

Type no.: 670DH015-00BA

EAN no.: 5705499129540

Size: 200x1500

Product Specification
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 200x1500
Weight (kg) 10,23
