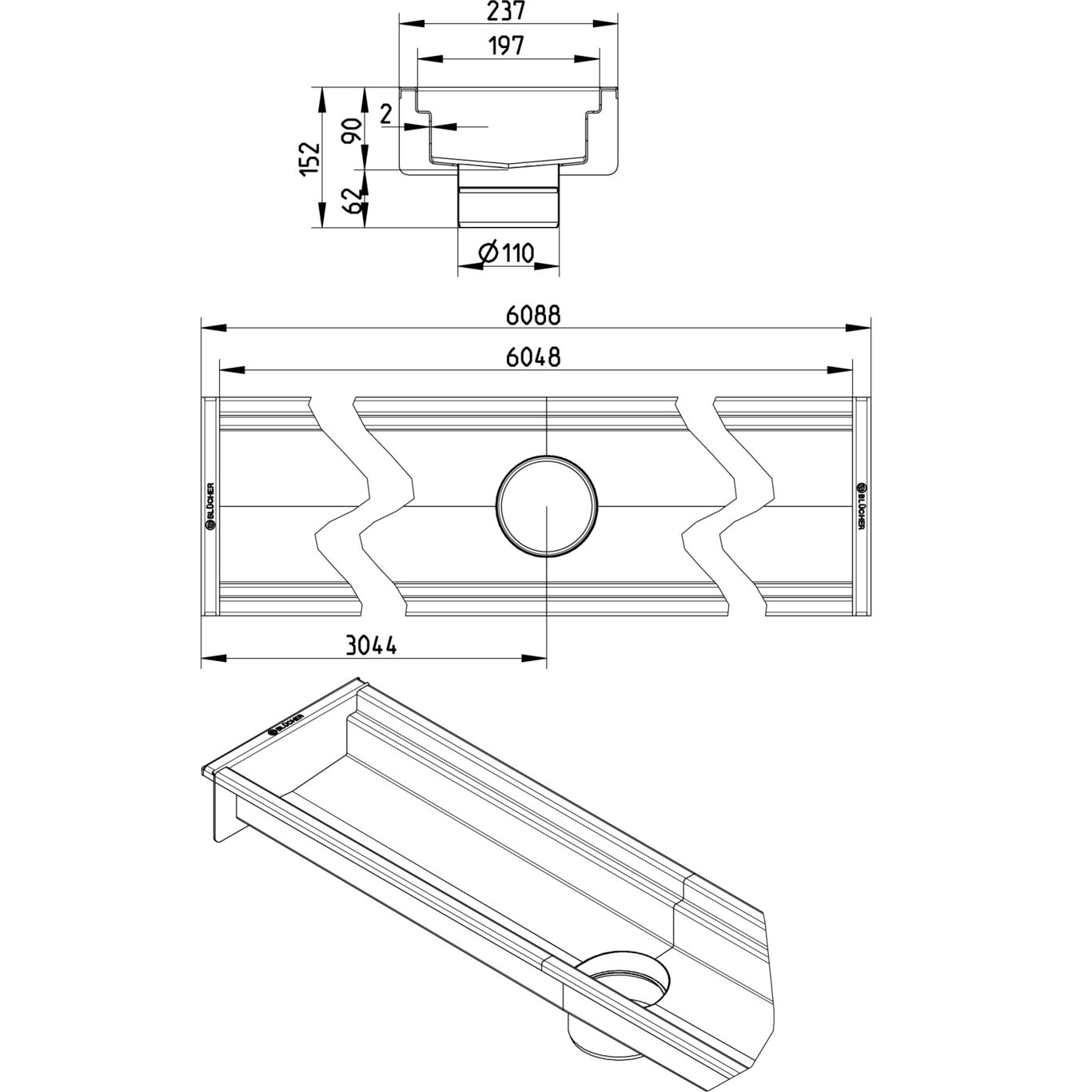

CHANNEL 200x6000 CENTER OUTLET - (670DH060-30BA)

Part Of the Series: Channel-No membrane

Type no.: 670DH060-30BA

EAN no.: 5705499129656

Size: 200x6000

Product Specification
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x6000
Weight (kg) 46,13
