CHANNEL 200x3000 CENTER OUTLET - (672DK030-15BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672DK030-15BA
EAN no.: 5705499130416
NRF no.: 3396482
Size: 200x3000

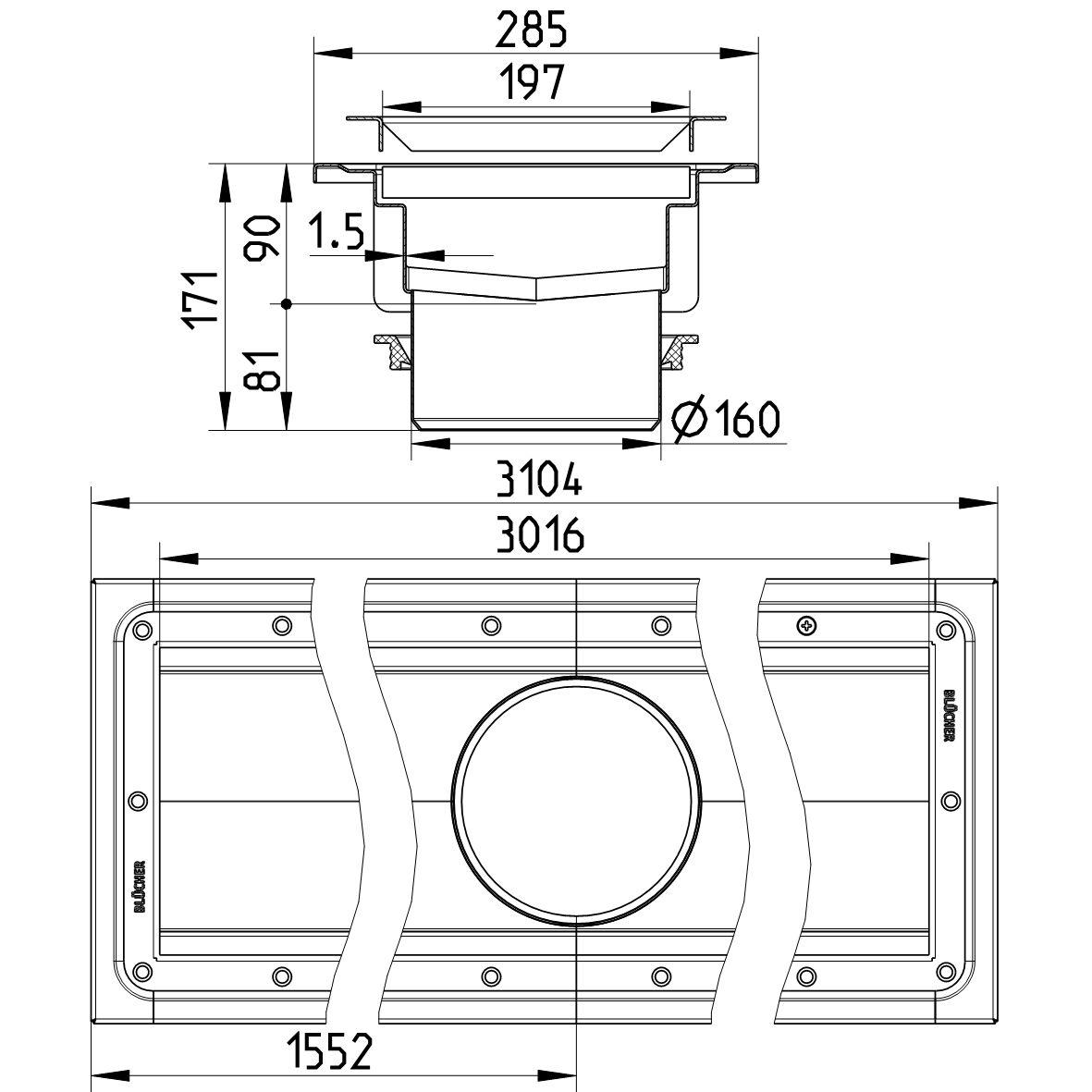

CHANNEL 200x3000 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 170 |
| Outlet Box | No |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 200x3000 |
| Weight (kg) | 21,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
